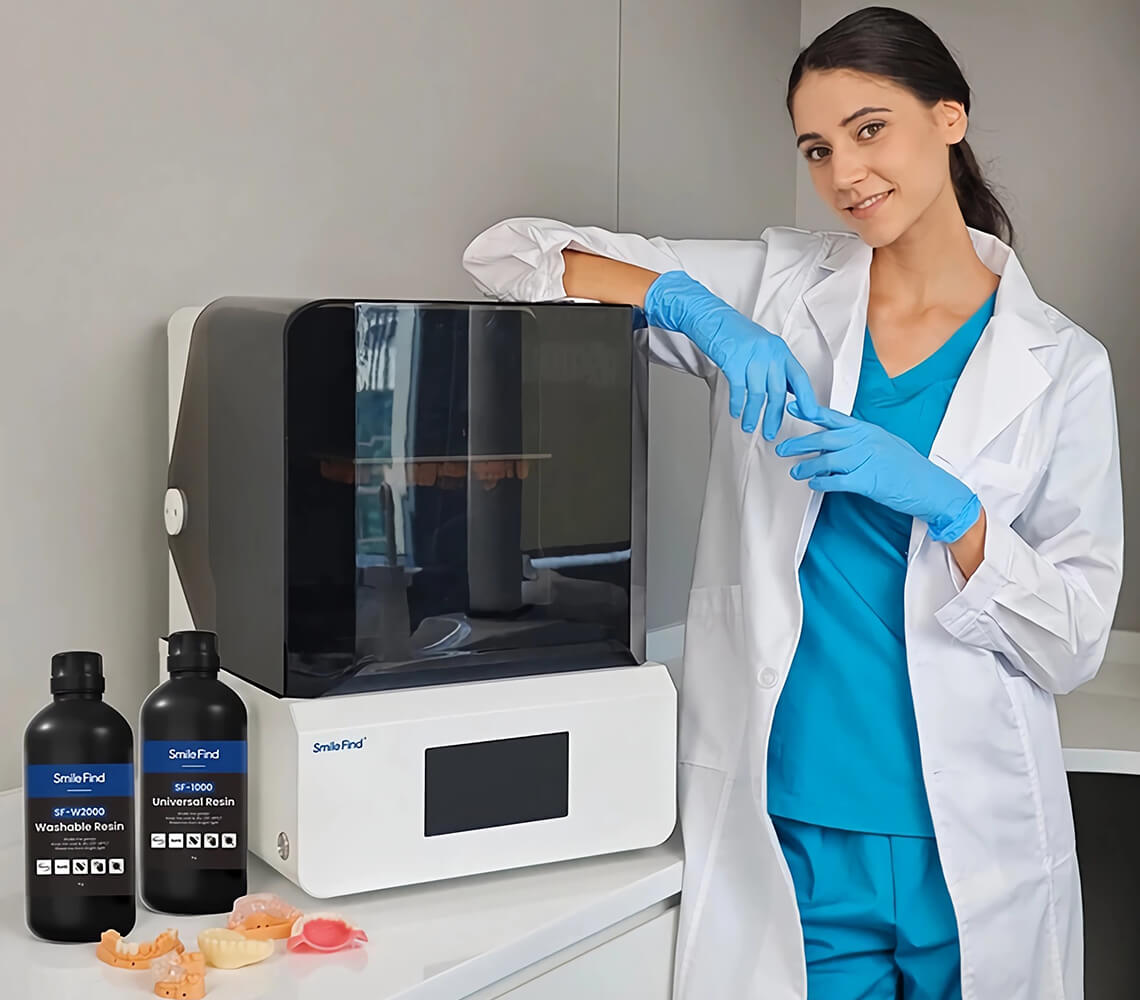

Metal High Precision Printing Lcd Technician Lab Machine Dental 3D Printer For Dentistry
High Precision Dental 3D Printer is engineered for dental laboratories and professionals seeking unmatched accuracy and efficiency. Utilizing advanced LCD printing technology, this machine delivers high-resolution, metal-precision dental models, crowns, bridges, and other dental appliances.
Build volume | 190*120*190mm |
Technology | LCD Technology |
Dynamic layer thickness | 0.05-0.1mm |
Device dimension | 390 ×420 × 550mm |
Net weight | 31kg |
Package weight | 45kg |

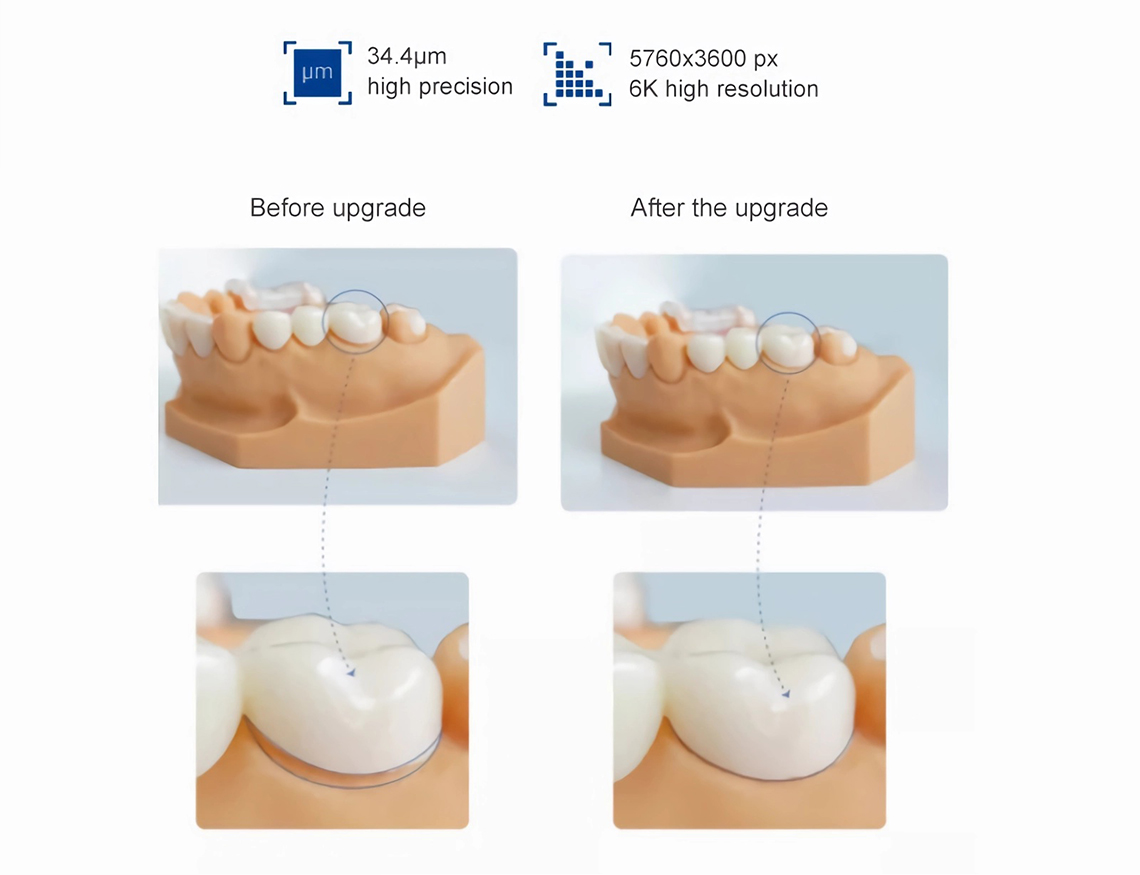

Upgraded Precision, Beyond ThePrevious Generation
Equipped with a 6K high-resolution LCD screen, it features a 34.4μm pixel size, which effectively enhances the fineness and smoothness of the finished surface.

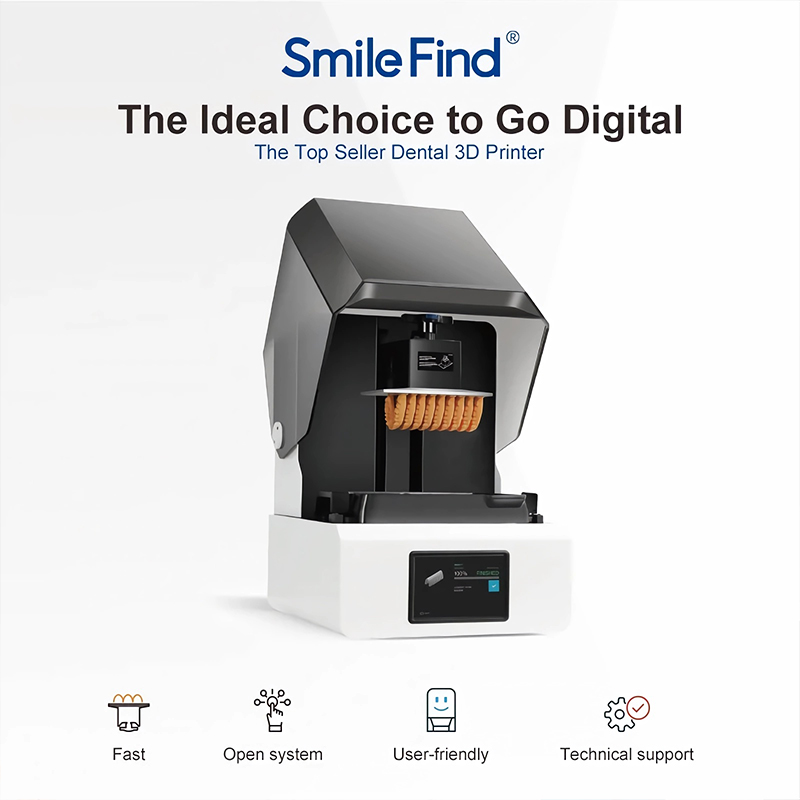

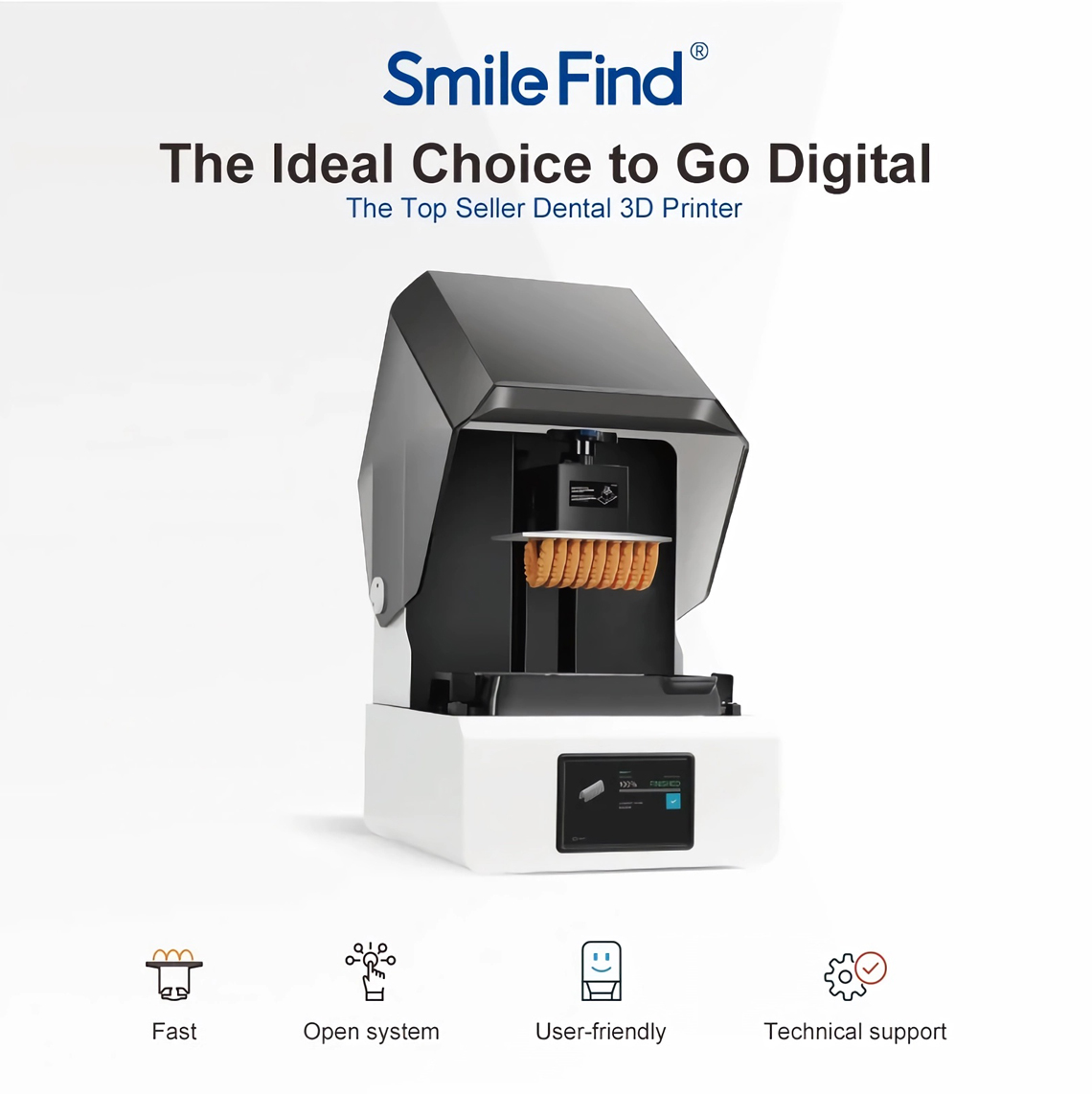

The ldeal Choice To Go Digital
User-friendly design enables quick access to high-frequency operations, such as removing the molding platform and resin tank.

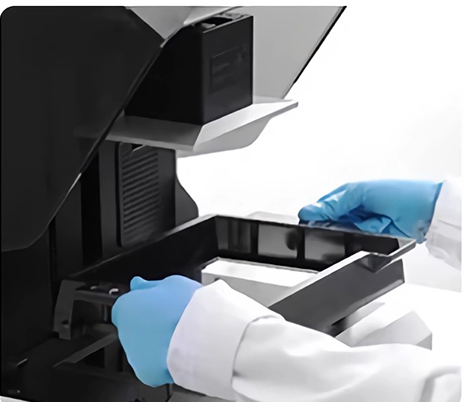

Place the resin tank on the tank glass and push it to the bottom stop, then lock it with the quick-release knob.
Turn the handwheel 180 degrees clockwise until the blue indicator points toward the operator.

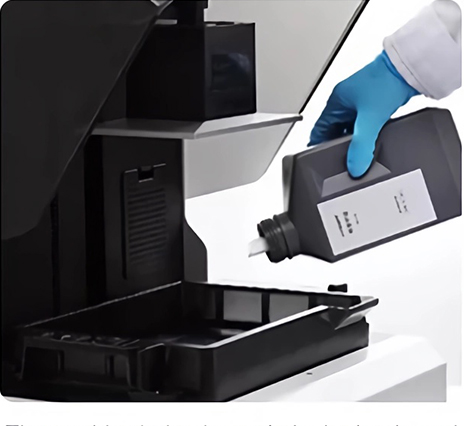

Thoroughly shake the resin bottle, then slowly pour the resin into the tank.

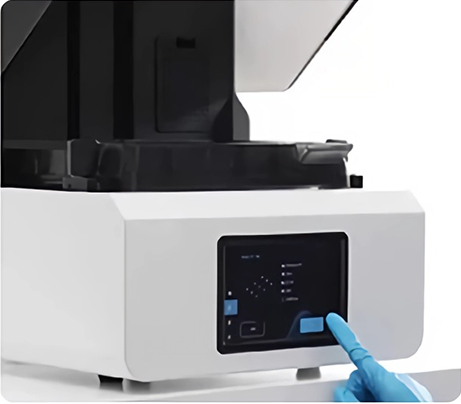

Click the "Print" button to begin printing. Waifor the printing to complete.

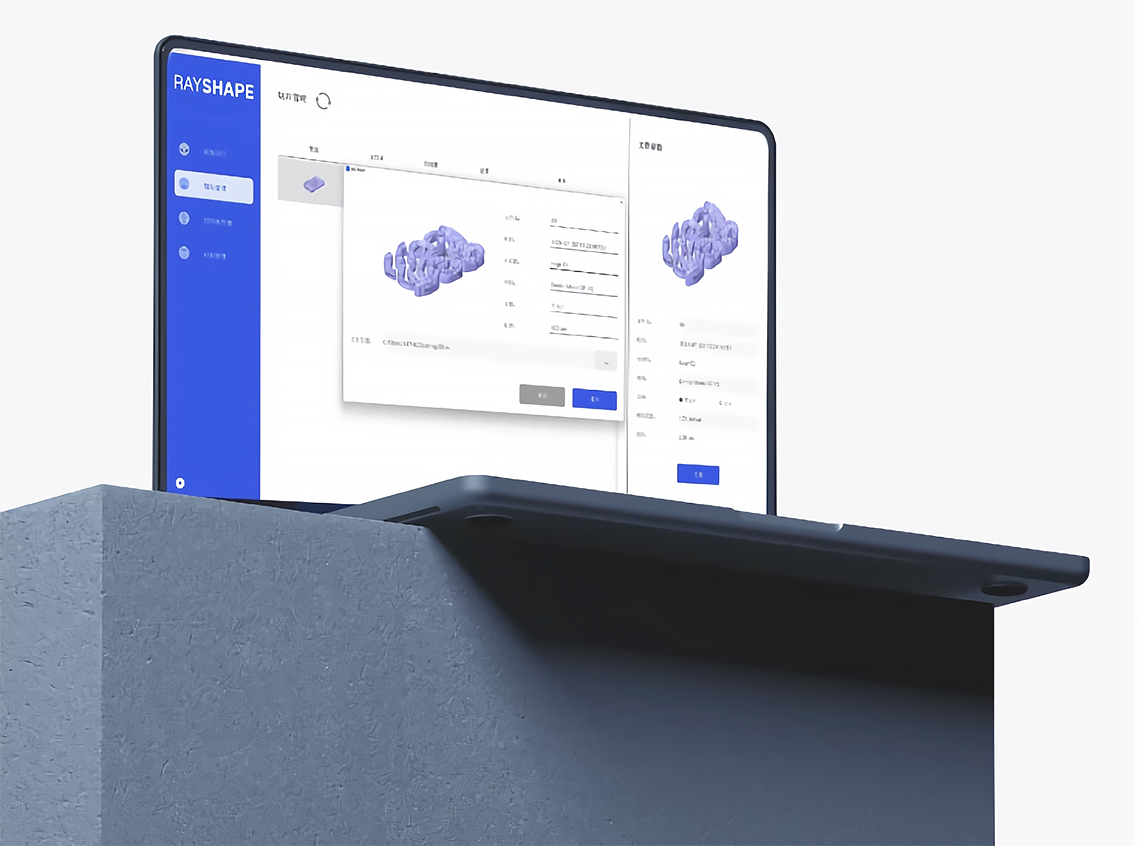

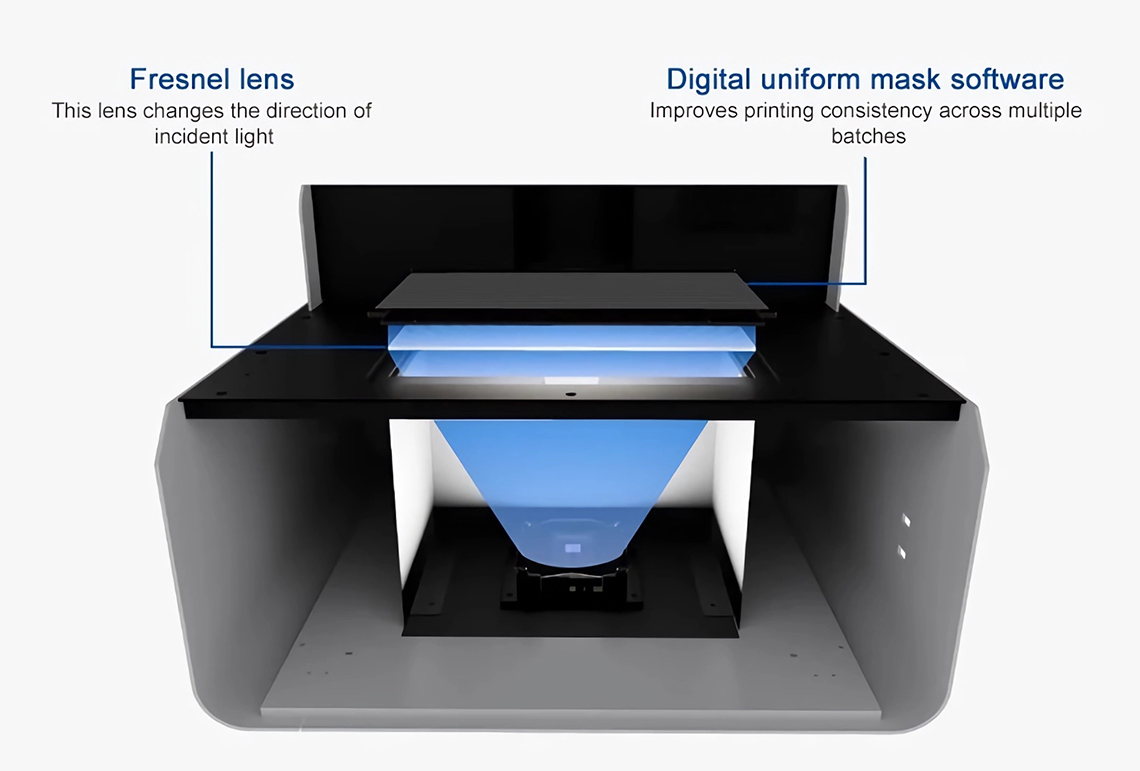

Software And Hardware Collaboration
Achieve consistent printing across the entire page
Greatly enhances the dimensional accuracy of model printing, meetingthe dental industry’s high standards for precision and reliability
Dental 3D Printing -In every application We Make The Difference.
Whether printing a single complex tooth model or batches of aligners, crowns, or other applications, the process runs at the same speed—shortening the path from design to product and boosting lab efficiency, enabling dentists to deliver personalized treatments faster.
- Removable dentures
- Dental implant guides
- Personalized trays
- Gingiva dentures
- Trial dentures
- Temporary restorations
- Tooth whitening tray models
- Bite pads / bite splints / night molar pad
- Retention models
- Indirect bonding guides for brackets
- Invisible orthodontic models
Printing Format Reaches 192 x120 mm
Double The Performance
Equipped with a 9.25-inch 6K monochrome LCD screen, it is ideal for orthodontic implants, dentures, temporaries, bite splints, and more—delivering stable, efficient, and precise performance in a compact design.

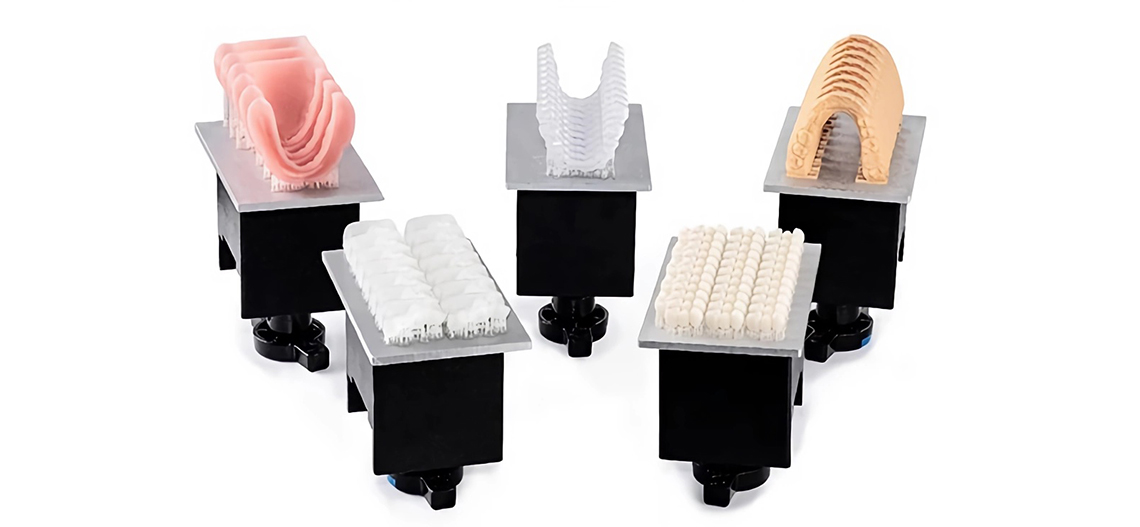

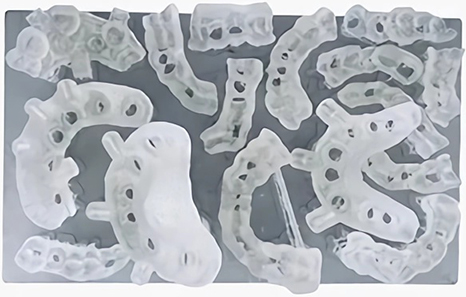

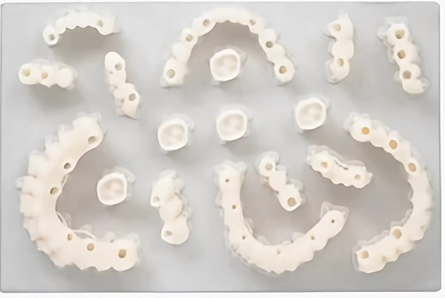

Implant guides (27 in 38 minutes)

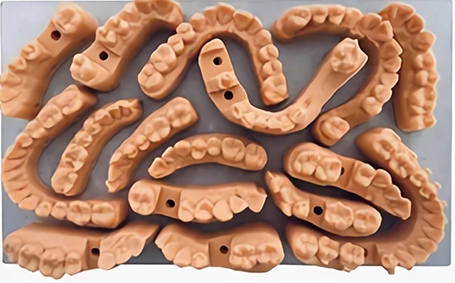

Repairing implant models (16 in75 minutes)
Temporary crowns (29 in 43 minutes)

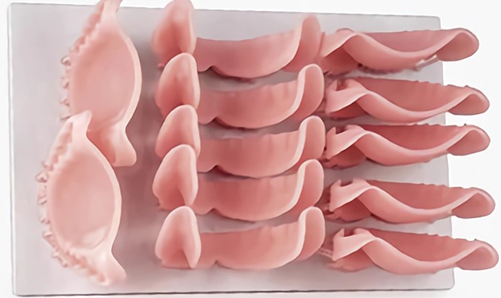

Mandibular denture base (13 in 93minutes)

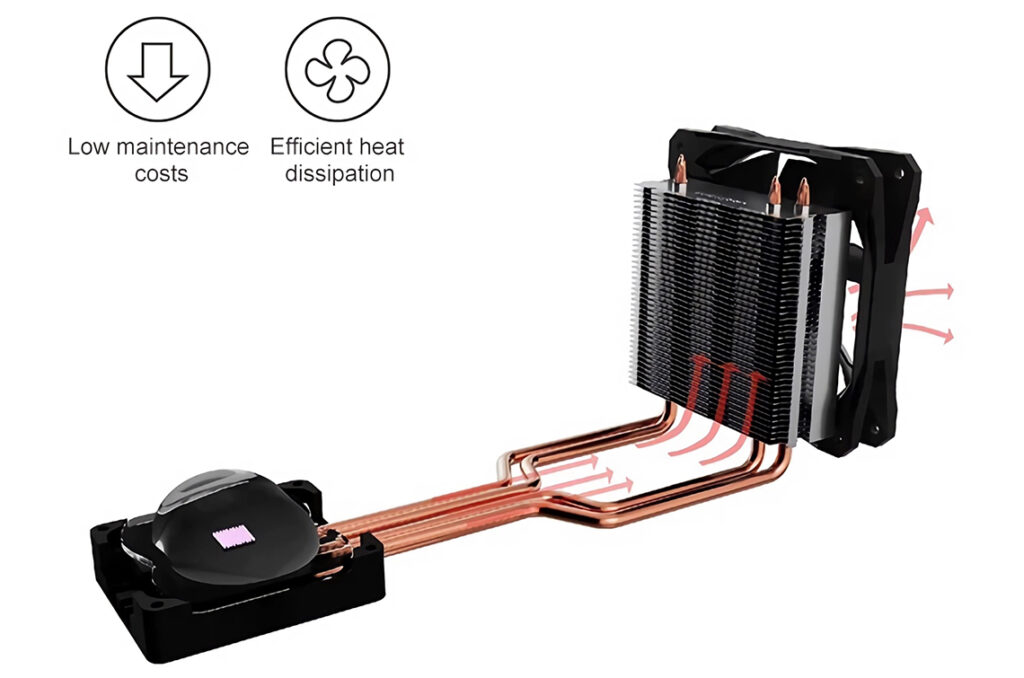

Efficient Heat Dissipation Design
Improves both light source lifespan and performance
Keeps the LED chip below the minimum temperature to ensure lifespan and power stability.

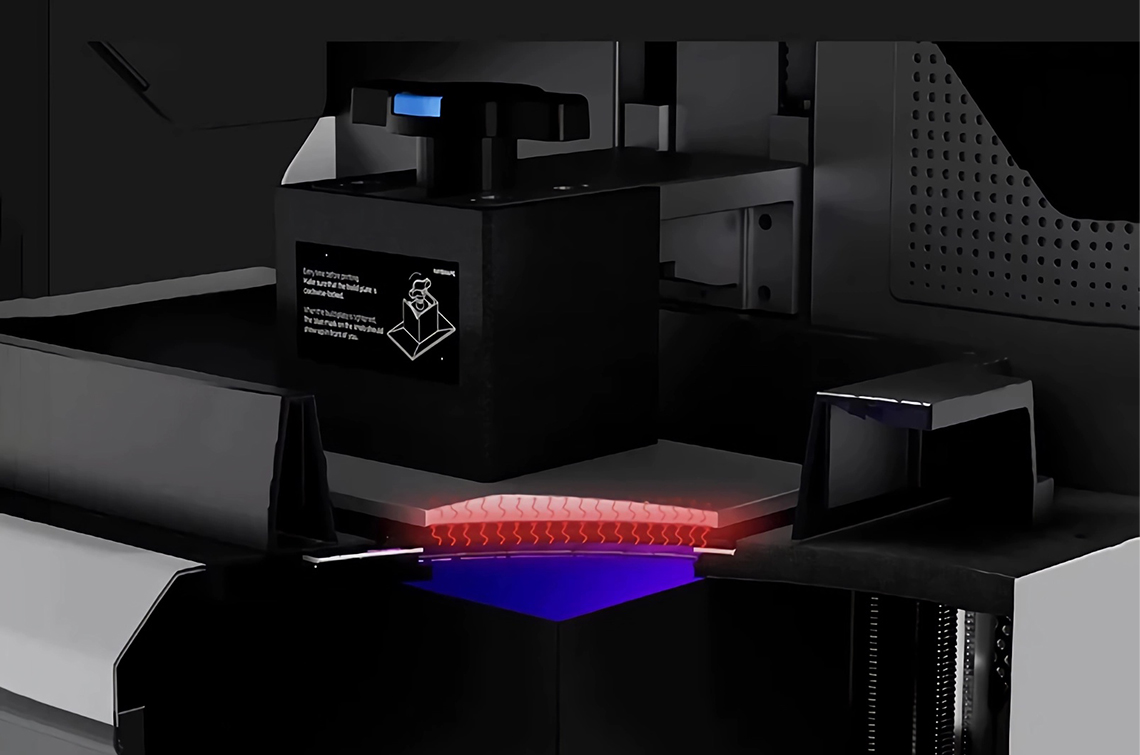

Intelligent Heating Printing Platform
Printed parts are firmly bonded
The printing platform is automatically heated to the set temperature to enhance adhesion between the platform and the printed part, significantly improving the success rate of full-plate printing.

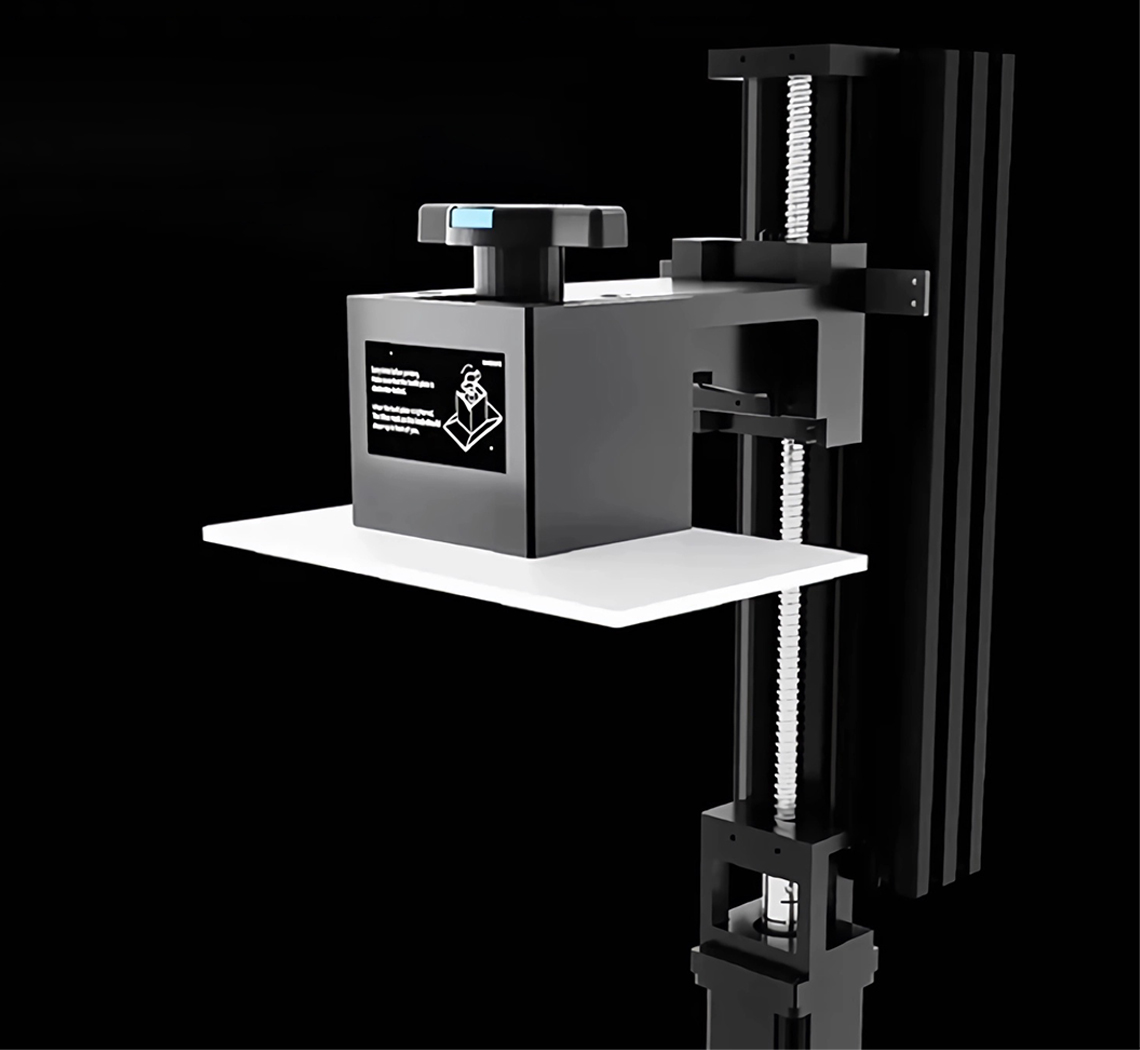

Industrial-Grade Drive Module
The industrial-grade ball screw drive module can withstand the high release forces during full-plate printing, maintaining print accuracy even under long-term, intensive use.
Meticulously Designed, Dramaticallylmproved
The hopper can be easily changed in just one minute. Leveling-free technology eliminates the time-consuming and laborious platform calibration required in traditional 3D printing, allowing even beginners to get started quickly and enjoy a plug-and-print experience.

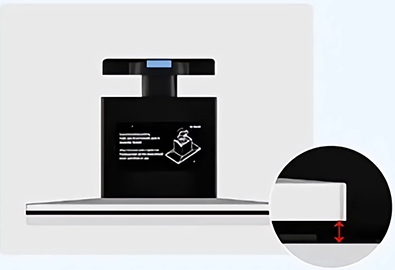

No leveling is required, eliminating thetedious platform calibration process
Even beginners can easily get started with theplug-and-print experience

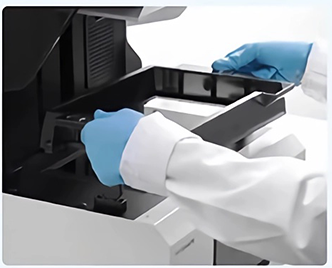

Quick-release design allows for easy hopperreplacement in under a minute
Easy release film replacement promotes efficientcontinuous production in dental applications
One Printer For All Your Lab's Core Needs
From study models to final restorations, the SDF-DP01 is your digital production workhorse, delivering exceptional speed, precision, and versatility.
Print a full-arch model in just minutes. Say goodbye to long waits, accelerate your turnaround times, and easily handle rush orders.
Maximize Your Throughput
With up to 49μm XY resolution and sub-micron Z-axis accuracy, ensure your restorations, guides, and models have crisp margins and a perfect fit.
Achieve Unmatched Precision
Compatible with resins for models, castables, surgical guides, denture bases, and more. One device for over 90% of your lab’s 3D printing needs.
Unlock Infinite Applications
Stop Outsourcing, Start Profiting
Bringing 3D printing production in-house not only gives you full control over quality and delivery times but also offers incredible cost savings.
This means you can **achieve a full return on your investment in as little as 8-12 months**, freeing up capital for business expansion or technology upgrades.
